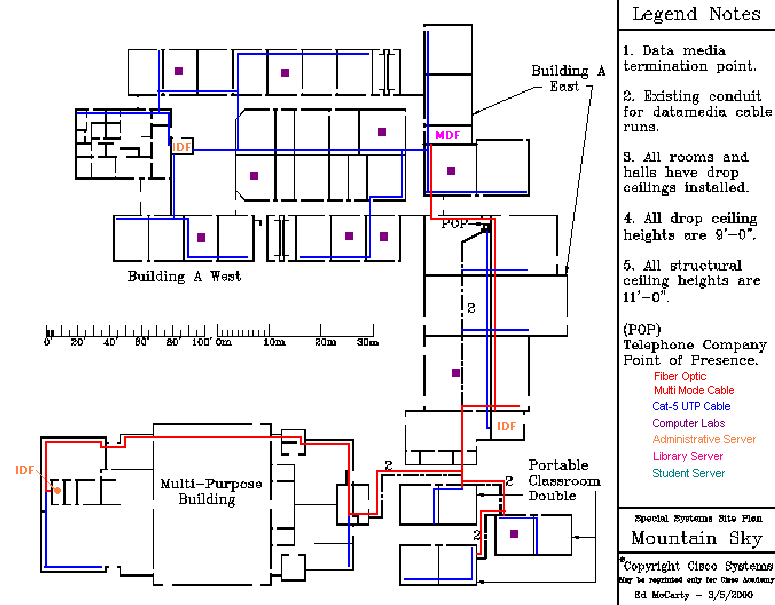

The displayed graphic shows the proposed Physical topology. Click to enlarge.
All rooms with purple boxes are computer labs and will have CAT5 runs and contain 24 student workstations, a network printer and one teacher workstation. All other rooms will have CAT5 runs. |
